| 4
channel DVR system |
A
professional 4 channel DVR system for small to medium sized office
use |
| |
 |
|
This system supports dual mobile racks for more
convenient replacement and reservation. The DVR can be programmed to
zoom images in full screen while sensor detecting motion.
It can also be programmed to select rotation display in
full screen for real time watching.
|
 |
| • |
Programmable
recording schedule for continuous, manual or event driven recording. |
| • |
Can
be connected to any TV, no special monitor required. |
| • |
Advanced
image compression technology, 40GB hard drive giving up to two
months recording time. |
| • |
Supports
dual hard disks. Selectable overwriting when full. |
| • |
OSD
( On Screen Display) menu for easy operation. |
| • |
Complete
4 channel stand alone DVR- no PC required. |
| • |
Real-time
watching and digital recording from up to 4 cameras simultaneously. |
|
| |
Display
frame: PAL |
100fps,
4 x 25fps |
| |
High |
20KB |
|
| |
Low |
12KB |
|
| |
Security |
password
protected |
|
| |
Recording
frame: PAL |
max
25fps(quad mode),max 6.25fps(each mode) |
|
| |
power
source |
100VAC
to 240VAC |
|
| |
Compression
format (each mode) |
Modified
MJPEG |
|
|

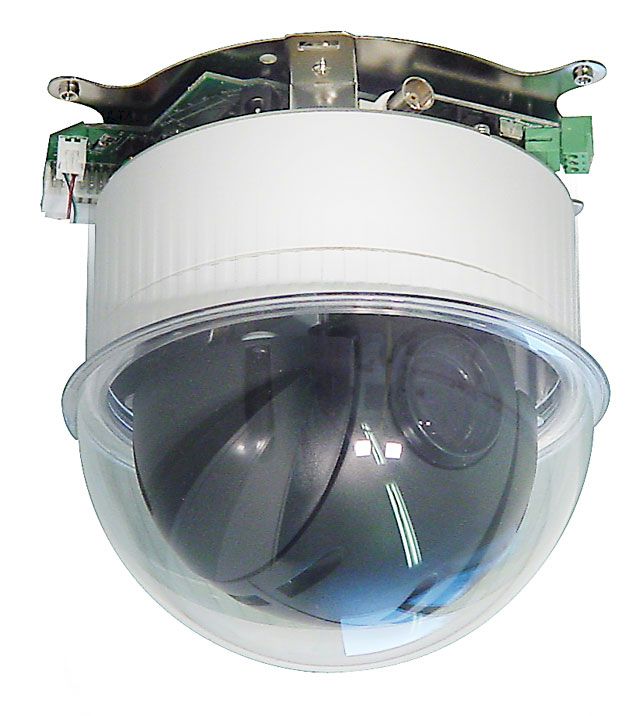

| Protex
motorized pan/tilt colour dome camera |
A
sophisticated motorized dome camera with remote pan and tilt control |
| |
 |
|
This camera provides is exellent work horse pan and tilt
camera suitable for use in single or multi-camera installations.
|
|
| • |
Camera
allows full Pan and Tilt remote control |
| • |
High
quality 460 TV line CCD |
| • |
Extremely
quite operation |
| • |
Easy
mounting |
| • |
Suitable
for use with PCD50C controller |
|
| |
Minimum
Illumination |
2
Lux / F2.0 |
| |
Storage
Temperature |
-30
- +80 C |
|
| |
Backlight
Compensation |
Yes |
|
| |
Lens
(F2.0) |
Standard
3.6mm |
|
| |
Dimensions |
168
O x 142 mm |
|
| |
Power
Requirements |
DC
12V |
|
| |
Weight |
820g |
|
| |
Power
Consumption |
300mA
Typical |
|
| |
Operating
Temperature |
-10
- +50 C |
|
| |
Horizontal
Resolution |
460
TV Lines |
|
| |
Video
S/N ratio |
46dB
(AGC OFF) |
|
| |
Synchronising
System |
Internal |
|
| |
Electronic
Shutter Control |
Auto-Shutter
(Electronic) |
|
| |
Mechanical
Iris |
No |
|
| |
Video
Output Level |
1Vpp/75
Ohms, composite |
|
| |
Device |
1/3
inch colour CCD |
|
| |
Gamma |
0.45 |
|
| |
Scaning
System |
PAL
625 lines, 25 frames/sec |
|
| |
White
Balance |
ATW,
2000 DegK - 10000 Deg Kelvin |
|
| |
Elements |
752x582
Effective |
|
| |
Electronic
Shutter |
Auto,
1/50-1/100000 |
|
|
| Protex
controller for pan/tilt dome camera |
A
controller suitable for use the Protex PXD50 motorised Pan/Tilt dome
camera. |
|
| |
 |
|
|
|
| |
Velocity |
Paddle
Switch H/L |
| |
Connector |
8P
terminal |
|
| |
Dimensions |
240x180x44mm |
|
| |
Auto/Manual
Scan |
Paddle
Switch Auto/Manual |
|
| |
Pan/Tilt |
Joystick
Up/Down/Right/Left |
|
| |
Power
Consumption |
3
Watts |
|
| |
Input/Output
Voltage |
AC110V/60Hz,
220V/50Hz (option) |
|
| |
Weight |
1.5Kgs |
|
| |
Power
Indicator Lamp |
LED |
|
| |
Construction |
Steel,
printed finish |
|
| |
Power |
Rocker
Switch ON/OFF |
|
|
| |
|
